This set you get 8 adapter plates allowing you to fit both front and rear V70R/S60R calipers^ with:
- 336 mm^ rotors of a XC90 series at the front
- 330 mm rotors of S60R/V70R at the rear
… to your 240 Series Volvo** .
KIT contains set of:
- 2 adapter plates to fit front calipers on to 336 mm rotors,
- 2 adapter plates to fit rear calipers on 330 mm rotors,
- 4 adapter plates to fir S60R handbrake,
- required bolts/washers to fit of all above.
Adapter plates are made from PA6 (EN AW-2017A) aluminium.
As standard adapters come in black anodizing. We can supply them in gold or silver anodizing* at no extra cost.
Colors available for 30.00 GBP extra premium: green, blue, purple and red*.
Made by ProRacingTechnology specially for RetroTurbo comes with 12 months manufacturer warranty.
^ Volvo OEM part numbers for the front calipers are 8602682/8602683.
336 mm rotor part number: Ferodo DD1371
Volvo OEM part numbers for the rear calipers are … ….
330 mm rotor part number:
Textar: 98200 1783 0 1
S60R Handbrake pads number: Ferodo: FSB645
* All other colors of anodizing apart of black may be a subject to 21 days awaiting due to processing time in paint shop.
** on +’84 spindles.
Attention: Mind that such rotor diameter will require at least ”18 wheels. Some may require additional spacers.

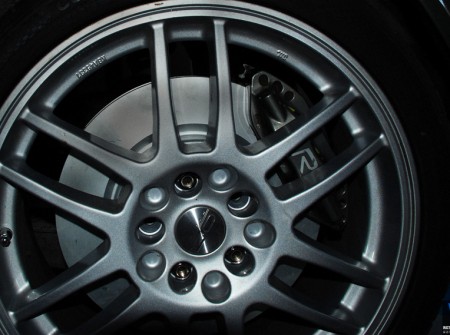

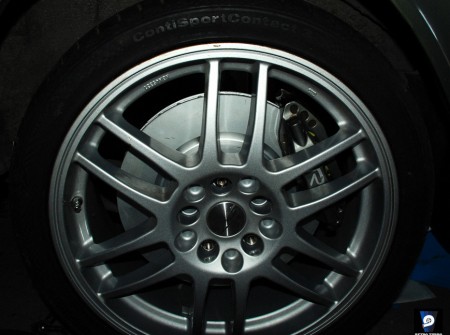

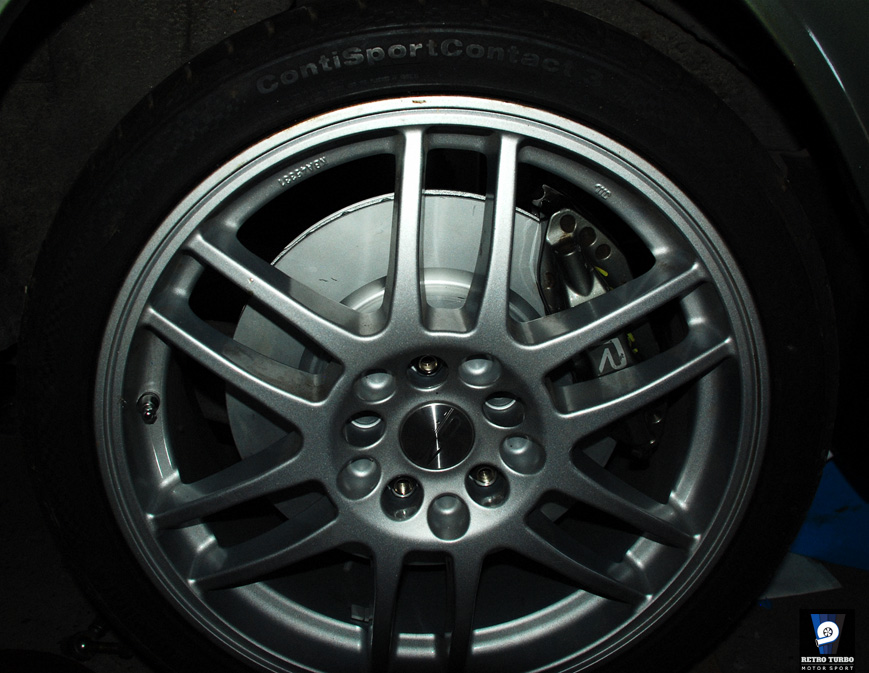

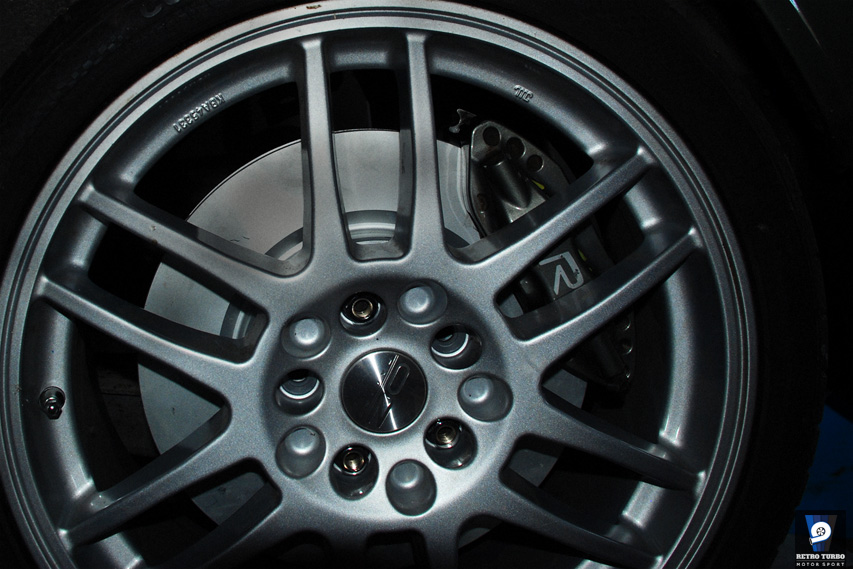

Picture shows KIT set up on a Volvo 960 just picture purposes.
