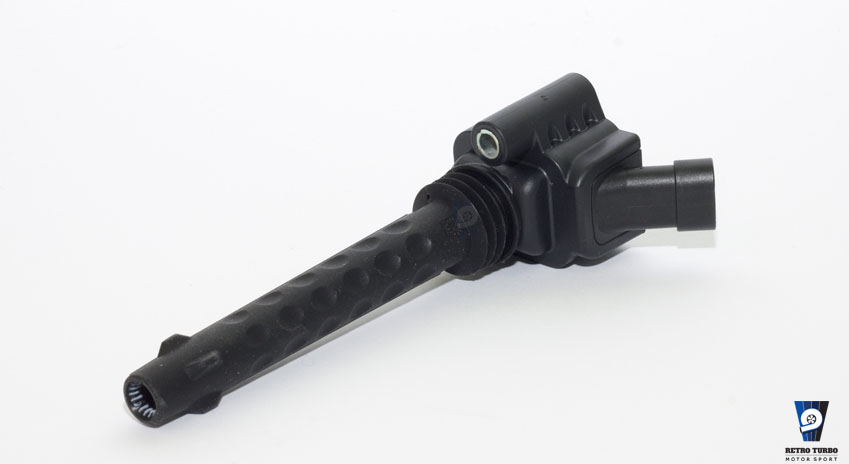

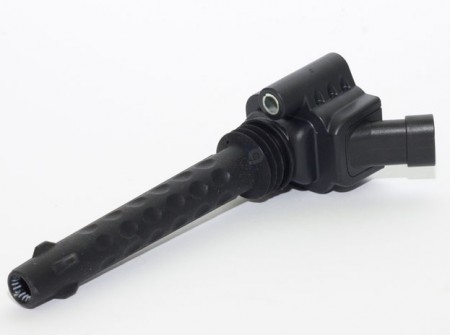

This single fire coil is a low cost concept designed for direct mounting to the cylinder-head. The coil  has no integrated transistor and requires an ECU with internal ignition power stages. With very high spark energy and competitive price is our first choice in any conversions of distributor to COP.

Distance form spark plug tip to  surface of coil mount 97 +/-3 mm

Spark energy:                                ≤ 65 mJ
Primary current:                          ≤ 7.5 A
Operating temperature range at
outer core:                                   -20 to 140°C

Connections
Pin 1               Engine GND
Pin 2               Ubatt
Pin 3               ECU ignition power stage
