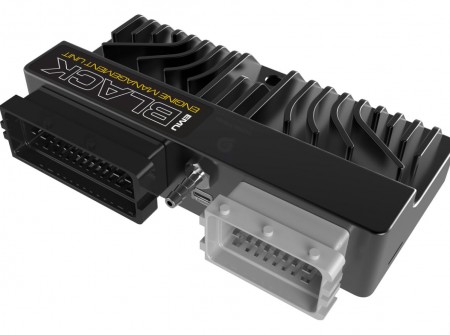

The EMU BLACK is a class-leading, stand-alone engine management system, designed to operate the most advanced and complex engines available. It is a successor of our proven system, EMU. Throughout EMU’s lifetime we collected lots of data that allows us to substantially improve the device hardware and software.
The EMU BLACK controls fueling, ignition and auxiliary systems on 1-12 cylinder engines including those with drive-by-wire throttles and VVT.
It can drive up to 6 passive or 12 smart coils directly and does not require external amplifier/power modules to achieve this. Sophisticated drive-by-wire strategies provide a wide range of throttle control along with advanced plausibility (fault/error) checking for safety.
Free, easy to install firmware upgrades further improve system capabilities (e.g. new strategies, trigger patterns, CAN data streams).
The EMU BLACK features more built-in value than any other aftermarket ECU. It easily matches the functionality of other stand-alone management systems with multiple inputs and outputs. Unlike many other ECU systems, the EMU Black has built-in wideband lambda input (Bosch LSU 4.2, and LSU 4.9 sensors wire directly in), MAP control connector (4 bar MAP sensor on board), 2 EGT probe inputs and an input to directly connect a Flex Fuel ethanol content sensor. All of this provides greater flexibility, reduces costs and negates the requirement for external or supplemental signal conditioning control systems and the associated wiring that other management systems require.
This ecu targets race cars, road cars, motorcycles, boats, and stationary engine applications.
TECHNOLOGY
The EMU BLACK is assembled according to IPC-S-815A standards to ensure high reliability of the product. The device is manufactured on an automated assembly line with optical inspection, automatically tested including burn-in. The PCB board quality and design, special surface coating and IP65 enclosure keeps the device operational in the harshest environments. The components used allow continued operation in a very wide temperature range (AECQ-100 GRADE 2 (-40 to +105˚C).
SPECIFICATION
GENERAL |
|
| Temperature range | AECQ100 GRADE2 (-40 to +105˚C) |
| Reverse battery protection | Yes, internal |
| Operating voltage | 6-22V, immunity to transients according to ISO 7637 |
| Enclosure | IP 65, custom CNC machined aluminium |

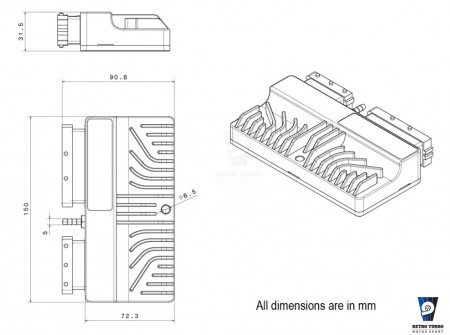

| Size (mm) and weight(g) | 150x72x31, 390 |
| Connectors | 1 x 24, 1 x 39 FCI Automotive connector |
| PC communication | USB (with PC client software), serial, CAN |
OUTPUTS |
|
| Injector outputs | 6 protected outputs 5A, low side |
| Ignition outputs | 6 outputs 7A(15A peak) (passive & active coils supported) |
| Aux outputs | 6 protected outputs 5A, low side |
| Other outputs | Full bridge up to 7A, can be used as separate outputs or 2 H-Bridges |
| WBO heater | Protected low side up to 5A |
| Communication | Serial, CAN BUS 2.0B |
INPUTS |
|
| Analog inputs | 9 inputs, resolution 10Bits, 0-5V (protected) |
| EGT inputs | 2 for K-Type thermocouple |
| Knock sensor | 2 inputs |
| Oxygen sensor | LSU 4.2, LSU 4.9 or Narrow band |
| Trigger inputs | 3 (primary, 2 cams) Hall/ VR software selectable |
| VSS | 1 (Hall / VR) |
| Flex Fuel Sensor | Yes |
| Switch inputs | 3 inputs, switched to ground |
SENSORS |
|
| Temperature sensors | IAT, CLT, Oil temperature, AC evap temperature |
| Pressure sensor | MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor, Back pressure |
| Oxygen sensor | LSU 4.2 or 4.9 (built in controller), Narrow band, external WBO controllers |
| Speed | Vehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated) |
FUELING |
|
| Injectors | Up to 8 HiZ injectors (sequential) |
| Injection angle control | 0-720 deg, start or end of injections |
| Battery compensation | User defined, wizard for popular injectors |
| Fueling strategies | VE based speed density, Alpha N |
| Air charge temp. | Based on IAT and CLT |
| VE table | 2 tables 16×20 (Load x RPM), resolution of 0.1% |
| Individual cylinder trim | Yes |
| Staged injection | Yes |
| Additional correction | Oxygen sensor corrections, EGT correction (per cylinder), BARO, TPS vs MAP, TPS vs RPM, Warmup, Nitrous, LC, ALS, ASE, Fuel pressure, Knock sensor |
| Lambda based real time correction | Using Lambda target table |
| Acc. / Deceleration enrichment | Yes |
IGNITION |
|
| Ignition outputs | 6 for passive and active coils (software selectable) |
| Supported triggers | N-1, N-2, N-3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Wiliams / Alpine, Colt 1.5CZ, Wrangler |
| Ignition angle table | 2 tables 16×20 (Load x RPM), resolution of 0.5 Deg |
| Per cylinder trim | Yes |
| Dwell time battery compensation | Used defined, wizard for popular coils |
| Odd fire compatibility | Application dependent |
| Additional correction | CLT, IAT, TPS vs MAP, Nitrous, Idle, Knock sensor, LC, Pit limiter, ALS, Flat shift, Timers, Acc. enrichment |
KNOCK SENSING |
|
| Channels | 2 |
| Resonant frequency range | 1-20kHz, 3rd order AAF |
| Sampling | Ignition event driven, knock window |
| Actions | Ignition retard, fuel enrichment, dashboard indication |
IDLE CONTROL |
|
| Control type | PWM solenoids (2,3 wires), drive by wire, stepper motors (bi and unipolar), ignition cut, fuel cut |
| Control strategy | Open / Close loop , ignition angle control |
| VE correction | Yes, for Alpha-N |
| Corrections | AC clutch, coolant fan, analog input |
BOOST CONTROL |
|
| Boost ref and target tables | 2 sets 10×10 (TPS vs RPM) |
| Control strategies | Open / Closed loop (PID based) |
| Corrections | Gear, VSS, IAT, EGT |
DRIVE BY WIRE |
|
| Control strategy | Advanced 3D PID + static friction compensation |
| Supported throttles | All with DC motor and current requirement lower than 6.5AWizard for 28 popular electronic throttles |
| PPS to throttle position characteristic | 3D table |
| BLIP support | Yes |
| ALS support | Yes |
TRACTION CONTROL |
|
| TC strategy | Delta RPM, gear compensation |
| Torque reduction | Spark cut using 3D table (16×20) |
| Sensitivity control | 10 position rotary switch |
VARIABLE VALVE TIMING |
|
| Supported systems | VVTi, MiVec, VANOS, Double Vanos |
| Number of camshafts | 2 |
| Control strategy | PID based closed loop, CAM angle target tables 12×12 |
FLEX FUEL |
|
| Ethanol content measurement | Yes |
| Fuel temperature measurement | Yes |
| Tables blending | VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup |
| Fuel temperature PW correction | Yes |
SPORT |
|
| ALS | 2 independent ALS setting, DBW support |
| Shift light | Per gear shift light |
| Launch control | Yes |
| Gear cut | Yes (Open loop), DBW blip supportedSource: Switch, load cell, CAN |
| Pit limiter | Yes |
| Rolling anti lag | Yes |
ENGINE PROTECTION |
|
| Fail safe values for critical sensors | Yes |
| Dashboard indication of failures | Yes, user defined |
| Over temperature engine protection | Yes (oil and coolant), user defined, RPM limit |
| Low oil pressure protection | Yes, user defined, shut off |
| Fuel pressure protection | Yes, fuel dose compensation, RPM limit, engine shut off |
| High exhaust temperature | Alarm, per cylinder fuel trim, boost limit |
CAN BUS |
|
| CAN standard | 2.0B 125, 250, 500, 1000 kbps |
| Supported CAN Dashes | ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM |
| Supported OEM CAN streams | BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST, EVO X (AYC support) |
OTHER |
|
| Unused injection outputs can be used as AUX output | Yes |
| Output functions | Fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output, AC clutch, main relay, speedometer, tachometer |
| Password protection | Yes, 2 levels |
| Timers | Fuel, Ignition, Boost, timers controlled by virtual outputs |
| Serial dashboard support | AIM, RaceTechnology |
| Autotune | Yes |
| Built in trigger scope | Yes |
| Logging | Real time logging to PC computer, logging on external loggers (serial / CAN) |
MORE PRODUCT DETAILS CAN BE FOUND BELOW:
ENCLOSURE
EMU BLACK bespoke enclosure is made from CNC machined aluminium. The enclosure design guarantee high immunity to mechanical damage, water resist (IP65) and very good heat conduction from electronic components.
Additional hole through the enclosure provides mounting point.
At the front of the enclosure there is a micro usb sealed connector for PC communication and MAP sensor connection tube.
PCB
EMU BLACK utilize 4 layers PCB board and most of components are SMD type (except connectors) and coated with special surface protecting the board and components from moist. Due to design, the device is extremely immune to the vibration.
Device is assembled according to IPC-S-815A standards on fully automated assembly line with optical inspection to ensure highest possible quality.
Carefully electronic components selection allows proper device operation in very wide temperature range (-40C to 105C) (AECQ-100 GRADE2)
ANALOGUE INPUTS
EMU BLACK has has two additional analogues inputs in comparison to regular EMU. In addition to this each analogue input has software selectable pullup / pulldown (4700Ohm). For CLT and IAT inputs the pullup resistor is 2200Ohm and could be disabled via software. That allows easy sharing temperature signals with OEM ECU when connected in parallel.
SWITCH INPUTS
EMU BLACK introduces 3 digital switch inputs that could be used for activating strategies by switching input to the sensor ground.
TRIGGER INPUTS
The input circuit for trigger inputs was redesigned. For each trigger input (Primary trigger, CAM#1, CAM#2 and VSS) pullup / pulldown could be selected (4700Ohm, 1000Ohm, 820Ohm) as well as analogue filter level (none, low, medium hall).
Primary trigger input could be HALL or VR (software selectable). For VR sensor the adaptive level could be changed (low, high).
For CAM#1 and CAM#2 inputs the reference voltage could be defined in separate 2D tables in function of RPM what greatly improves noise immunity for VR sensors (the higher RPM the higher trigger voltage threshold)
For VSS sensor VR or HALL sensor type could be selected.
FLEX FUEL INPUT
EMU BLACK introduces separate input for Flex Fuel sensor ( regular EMU uses CAM#2 or VSS input for this purpose).
IGNITION OUTPUTS
Ignition output circuit was redesigned especially the driver of active coils. EMU BLACK supports active and passive coils (software selectable). In comparison to regular EMU it is possible to drive 2 active coils from one ignition output. In addition to this when active coils are selected for connected passive coils no damage occurs.
H-BRIDGE
The stepper outputs of regular EMU were replaced by two state of the art bullet proof H-BRIDGEs with over 6A continuous current (1A for regular EMU). It allows to control stepper motors, electronic throttle, VANOS as well as any solenoid with current draw lower than 6A (low and high side drive possible)
DBW
Due to high current capability of built in H-BRIDGE, EMU BLACK is able to control directly electronic throttle (no external module required). Moreover the control strategy was improved (two times higher update rate, defined PWM frequency from 1000Hz to 8000Hz) to allow higher precision of throttle control. For safety reason the DBW strategy works on 2 separate processors and any malfunctioning in one of them causes throttle limp mode.
AUX OUTPUTS
All AUX outputs of EMU BLACK have built in fly-back circuit for precise control of solenoids (in regular EMU external diodes are required for PWM controlled solenoids).
WBO
Wideband oxygen sensor circuit was redesigned to support LSU 4.2 and LSU 4.9 Bosch sensors.
CAN BUS
EMU BLACK has built in CAN bus support (as well as separate serial communication) with software selectable 120Ohm terminator.
5V OUTPUTS
Regular EMU use the same internal voltage regulator for internal circuits and external sensors (+5V output). EMU BLACK introduces addition +5V regulator for 5V output. In addition to this there are two +5V output terminals for easier harness design.
FIXED 12V
EMU BLACK has new power scheme. The +12V is provided by fixed 12V input (it is used for powering the device and flyback circuit). The switched +12V is used to turn on and off the device.
ANALOG GROUNDS
EMU BLACK introduces 3 separate sensor ground terminals to allow easier harness design.
CONNECTORS
EMU BLACK uses 2 connectors (black and gray). The gray connector (24 ways) has the same pin layout as regular EMU. The black connector is replaced by 39 ways one. Due to smart pin layout it is very easy to repin regular EMU BLACK connector to the new one.
SOFTWARE
EMU BLACK software is improved over the regular EMU. The configuration tree has now additional hierarchy level what makes navigation easier.
Booklet can be downloaded here
