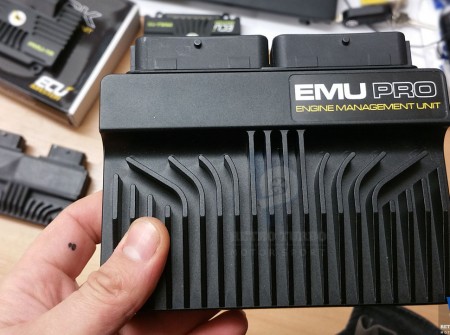

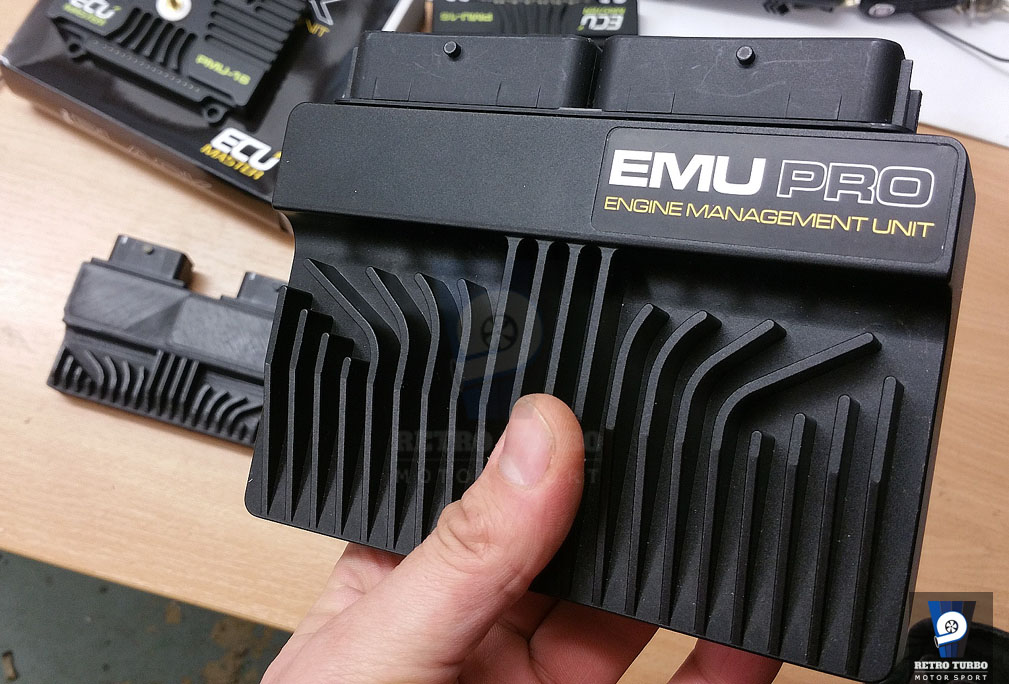

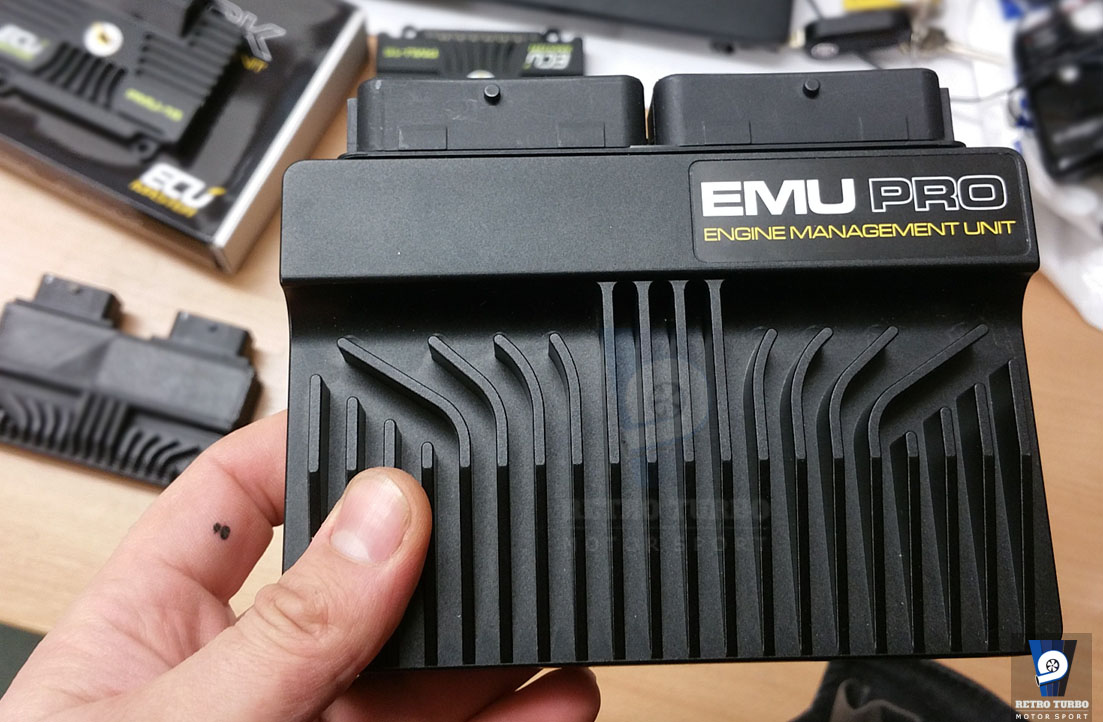

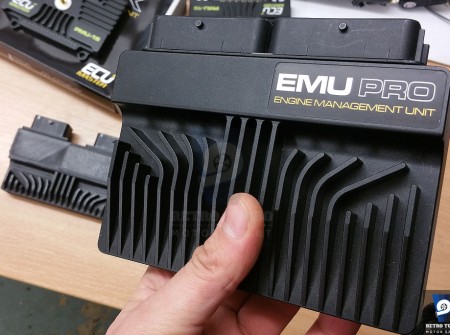

RetroTurbo Motorsport is an authorized dealer of Ecumaster EMU PRO-16 ECU.

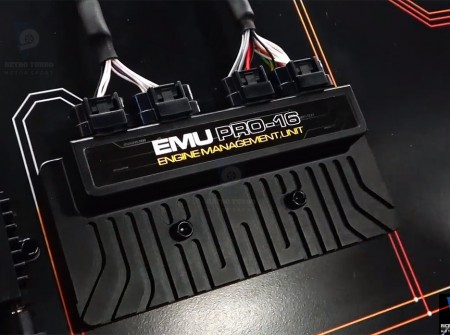

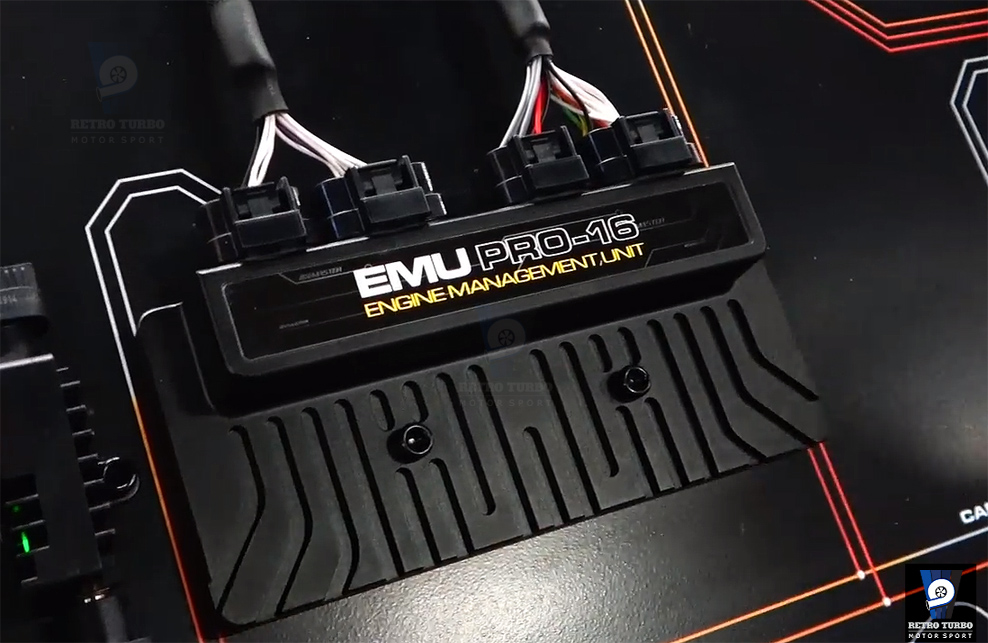

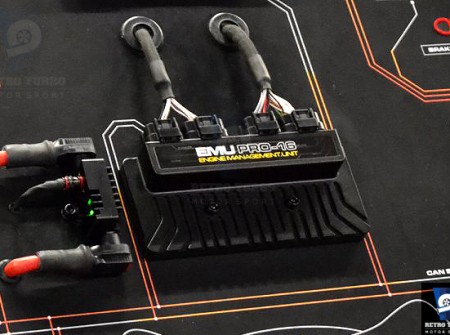

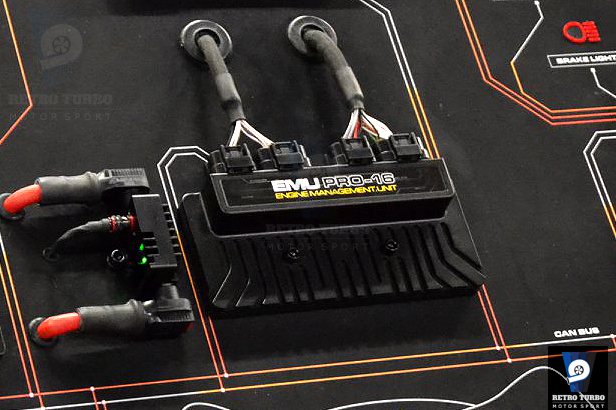

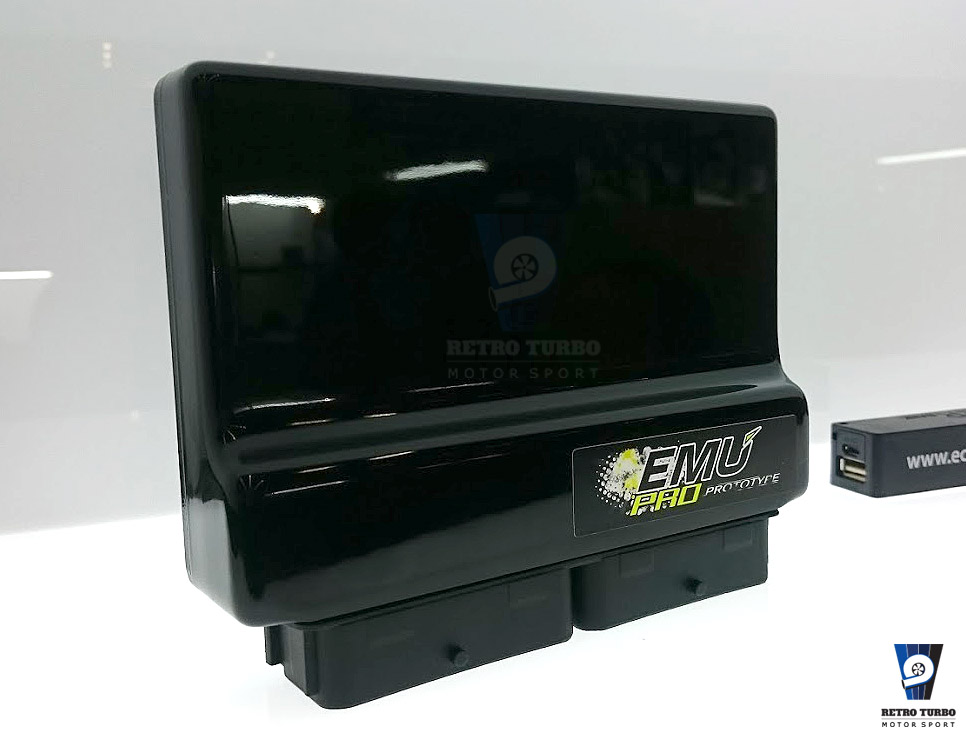

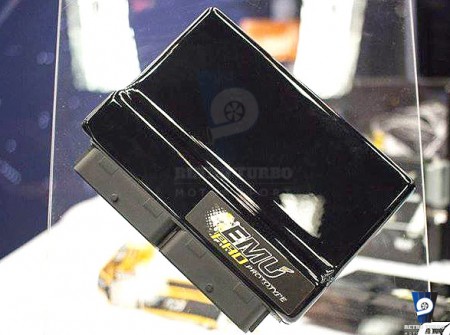

The long awaited Emu PRO-16 has been officially featured by Ecumaster on Professional World Motorsport Expo 2019 offering the following capabilities:
- Supports up to 8 cylinder engines in sequential operation, and 12 cylinder engines in semi-sequential operation
- User definable current control for injector output channels (for low impedance injectors)
- Advanced data acquisition system with up to 512 Hz logging per channel and 2 GB internal memory
- Built in 3-axis accelerometer
- Advanced paddle shift and gear change cut strategies
- Support for VANOS, VVTi and other variable cam systems (control for up to 4 cams)
- Sophisticated Drive By Wire support for 1 or 2 throttles
- Advanced fueling algorithm based on resultant engine volumetric efficiency
- Built in dual-channel wideband oxygen sensor control (for Bosch LSU 4.2 or 4.9 sensors)
- User-definable output channel assignments
- 3D tables resolution up to 32×32
- Engine protection functions
- Free firmware updates
- Waterproof housing (IP67 standard)
8 Injector channels (high or low impedance)
8 Ignition channels (up to 15A, smart or passive coils)
16 Auxiliary outputs (6A)
2 H-Bridges (up to 6.4A)
2 CAN BUS Channels (CAN 2.0B)
1 Serial Output
16 Analog inputs
2 EGT Inputs
2 Knock sensor channels
5 Trigger inputs (1 crank, 4 cam, Hall or VR)
4 Wheel speed inputs (hall or VR)
1 Flex Fuel Input
1 Turbo shaft speed input
Emu PRO-16 will come with dedicated Windows client software called EMU PRO that will be included with every EMU PRO-16 sold.
This unit will become available in first quarter of 2020 – If you wish to show your interest or ask any questions email our sales manager at peter@retroturbo.com
