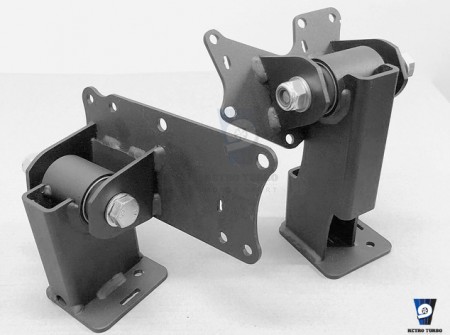

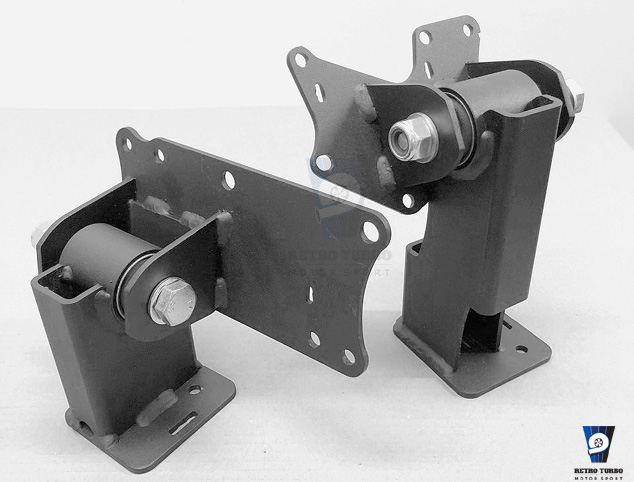

RetroTurbo solid engine mounts will allow you to install 5/6 cylinder whiteblock engine in your Volvo 240 Series*. Engine is kept at 12 degrees slant.
Fits older Volvo T5 and T6but also the newer ones from 05-06 which have a slightly different bolt pitch. No need to change the crankcase or similar, these fit right in!
Some motors have a factory prepared casting in the block for a bolt hole, these may need to be used. Some are just a hole that you can thread up, and some you have to drill it yourself. When mounting the intake side on newer Volvo T5, you may need 2 M7x20 (same as the oil pan) bolts, these are not included. The alternative is to thread these to the M8.
Supplied with screw and spacers. (the spacers are used for the top 3 bolts on the intake side).

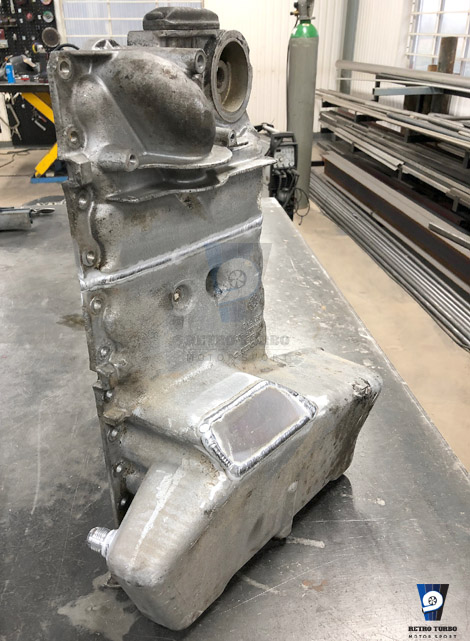

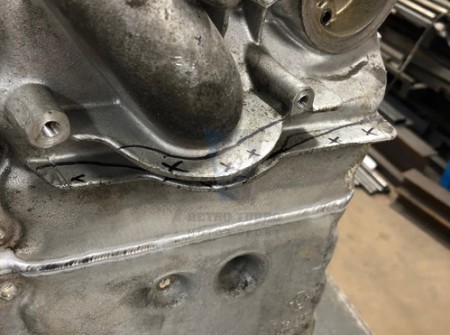

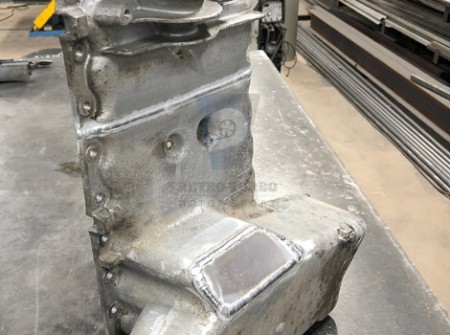

NOTE! As the space is very tight between the front beam and the firewall on the 240, these are designed so you have to remove a small corner of the pan as per picture in the gallery, as the engine comes much further forward. As well, at the front of the pan you have to weld a small piece of plate as per second pic in the gallery.
This is to get a little better clearance on the driveshaft, as well as a little more space for you who use the ZF 6vxl box as they become very tight in 240′s small tunnel. The two flanges at the front of the trough also need to be ground down so as not to touch the steering rack.
If you look for solution for your transmission we do offer BMW ZF 5vxl and 6vxl gearbox x-members for Volvo 240 .
By purchasing this product you agree to our T&C found here. Get in touch for your requirements through contact form. We deliver worldwide!
- *Motorsport use only.
