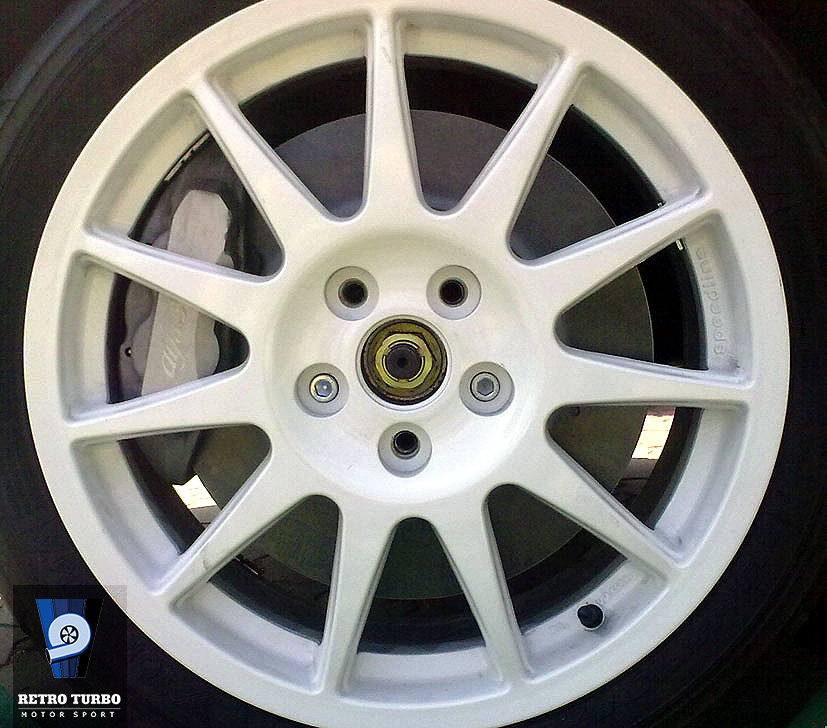

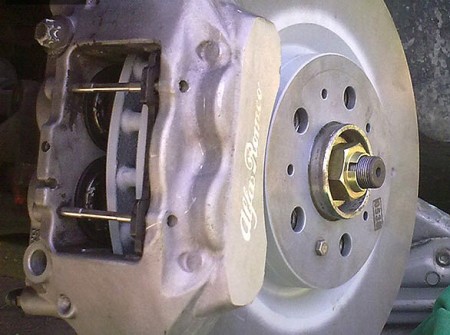

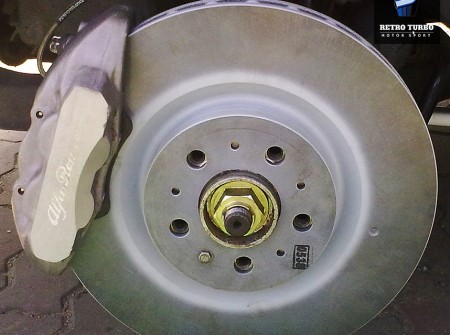

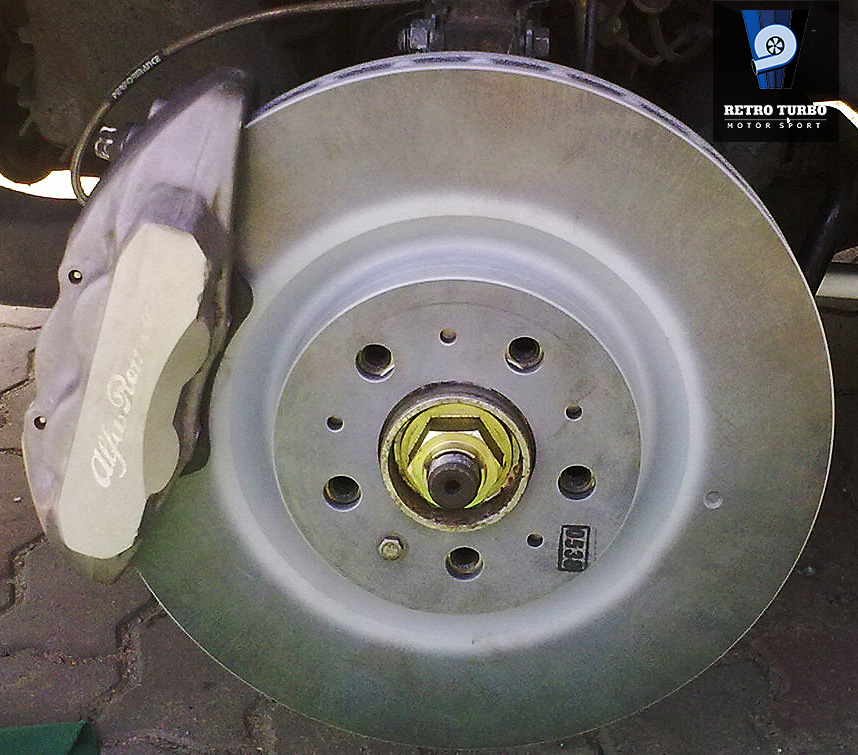

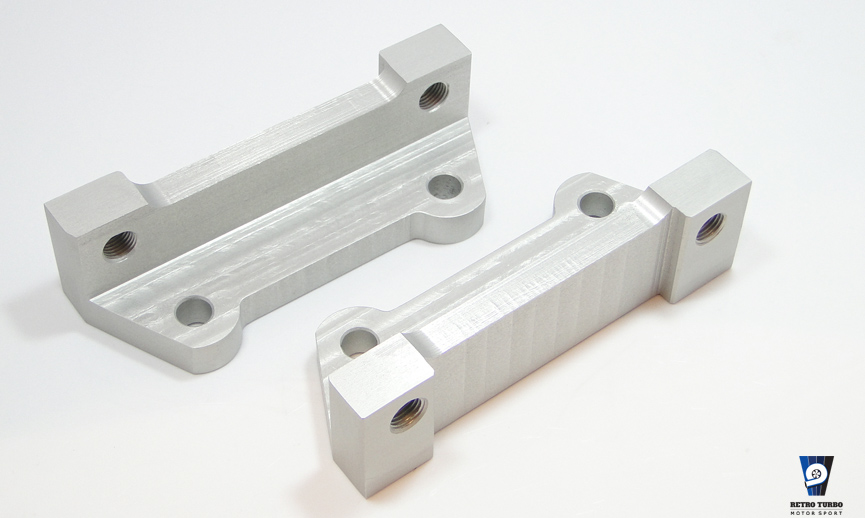

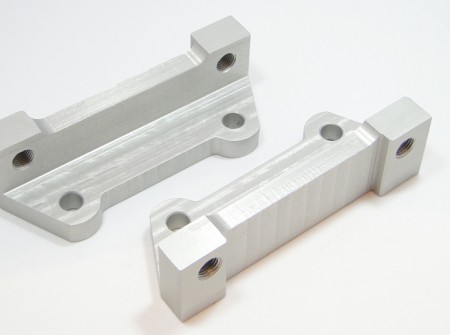

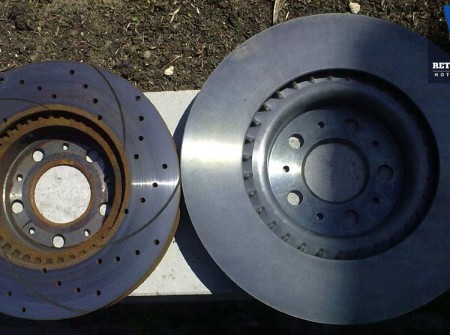

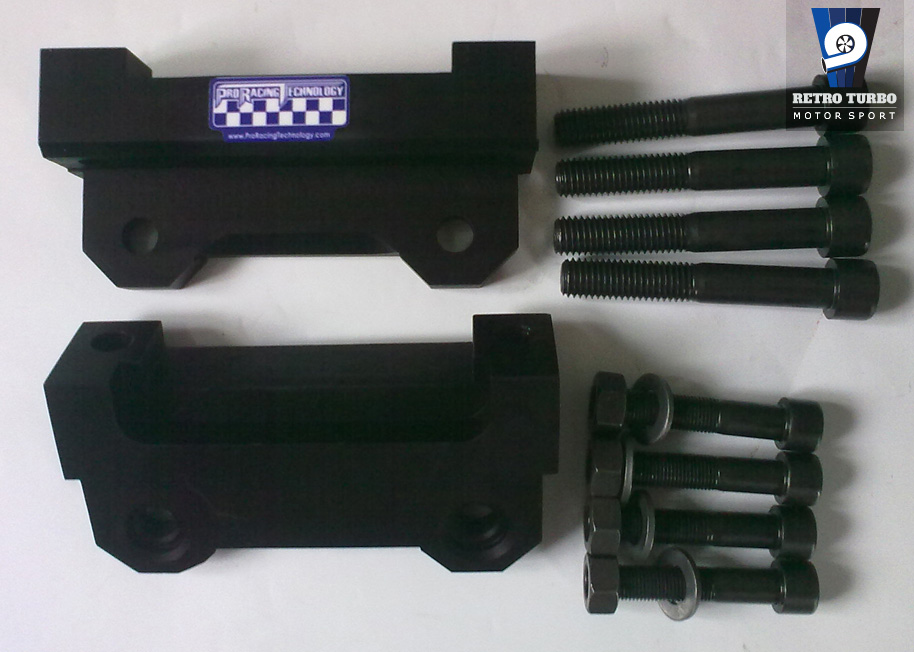

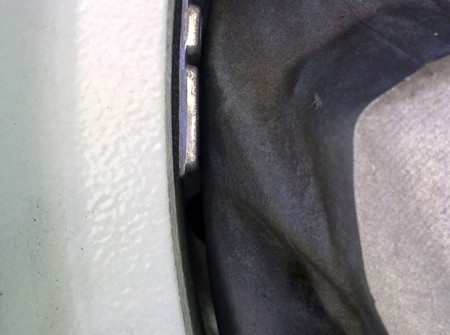

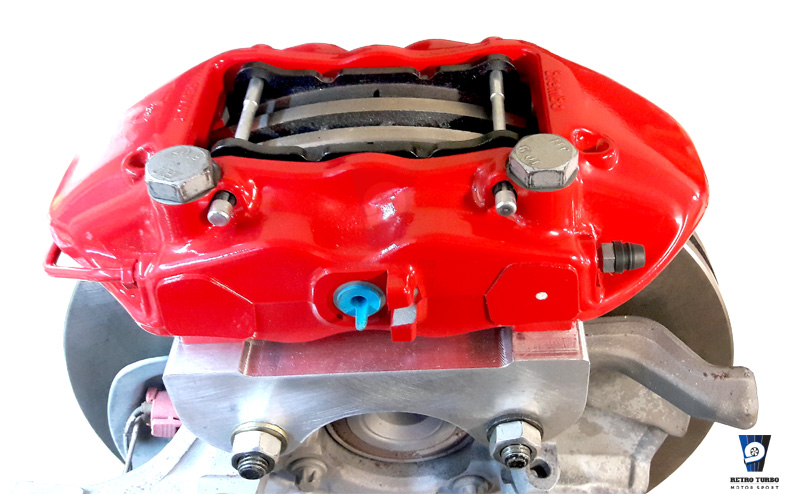

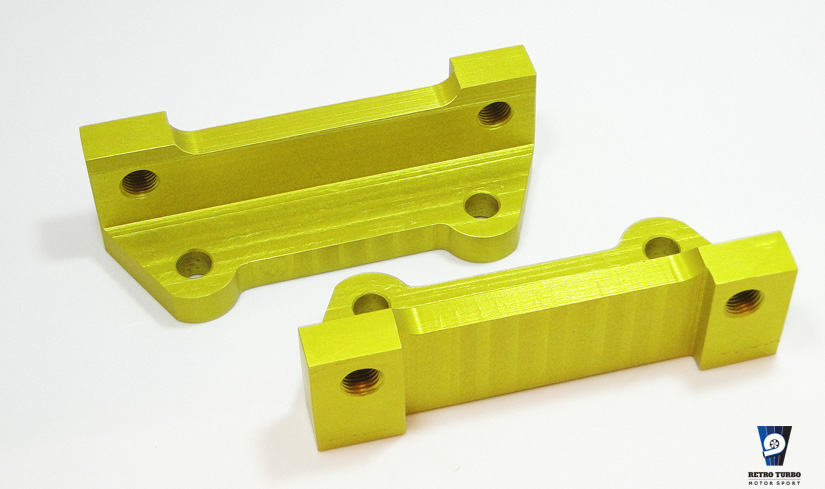

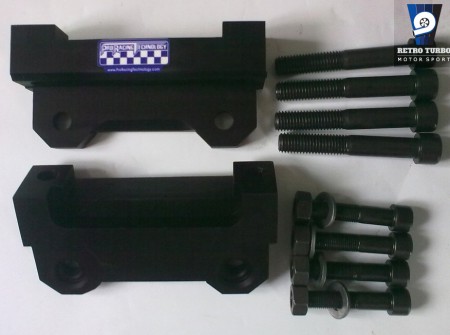

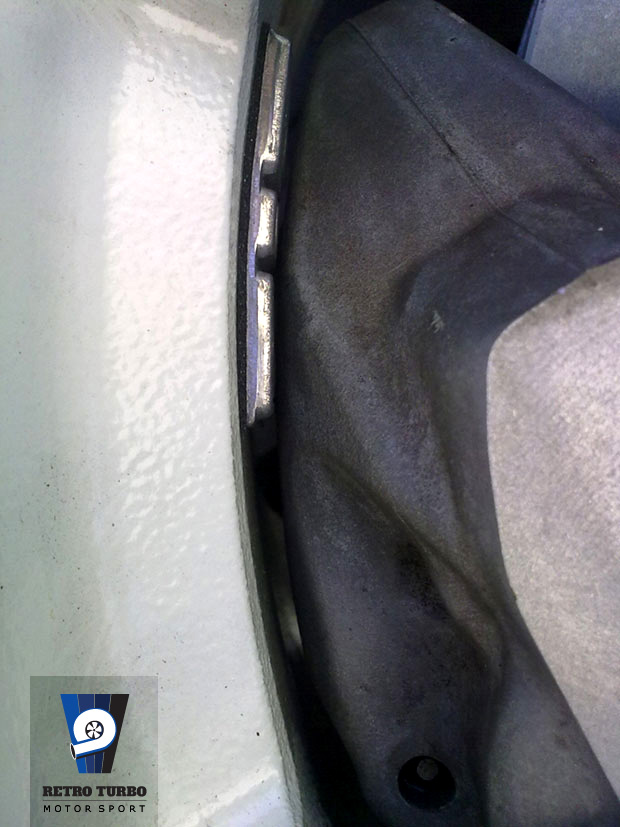

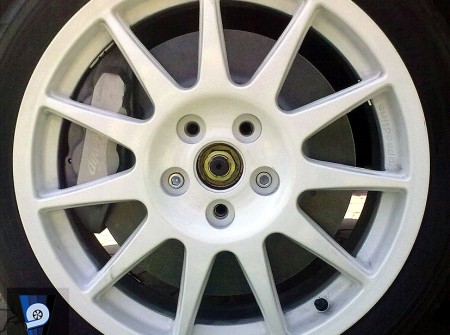

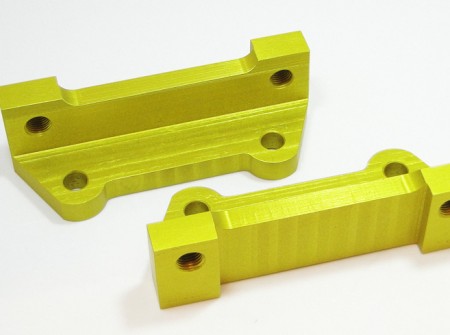

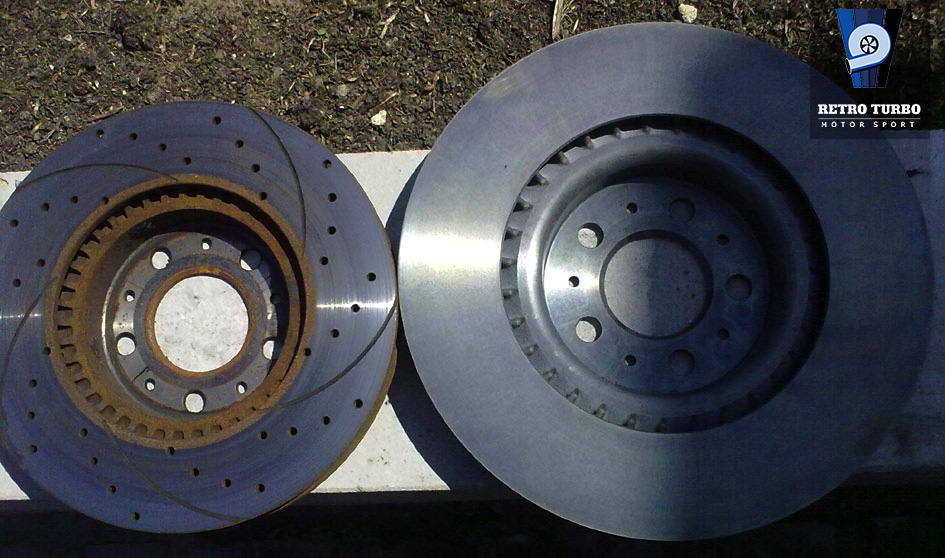

This set you get an adapter plates allowing you to fit front Alfa Romeo 159 3,2, 2,4 JTDM four pot calipers with 336mm rotors of XC90 to your Volvo V70 S70. KIT contains set of 2 adapter plates for front axle of your vehicle + required bolts/nuts/washers. Adapter plates are made from PA6 (EN AW-2017A) aluminium. Bolts are 4xM12 class 8,8 and 4xM12x1,25 class 12,9. Nuts are 4xM12x1,25. Suitable for some 17inch alloy wheels* with minimum 5 mm spacer, but really you should consider at least 18inch alloys to run this set up.
Made by ProRacingTechnology specially for RetroTurbo Motorsport comes with 12 months manufacturer warranty.
Colors of standard anodizing available:
Colors available for £30 extra premium:
- red (reconsider as color fades within 6 months)
* sorry to ruin your dreams but they wont go with Volans.

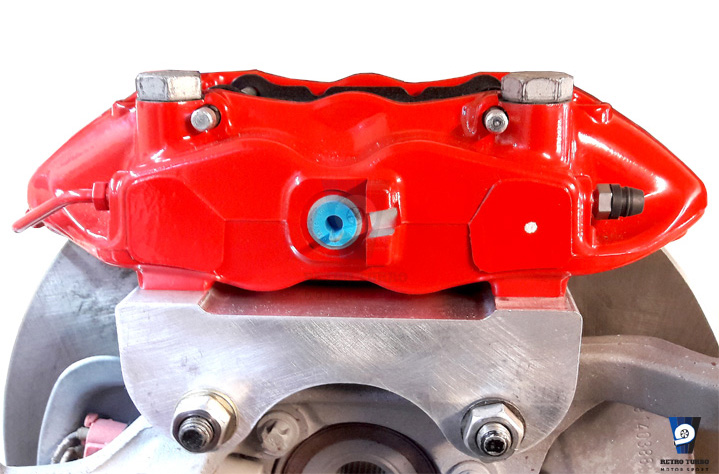

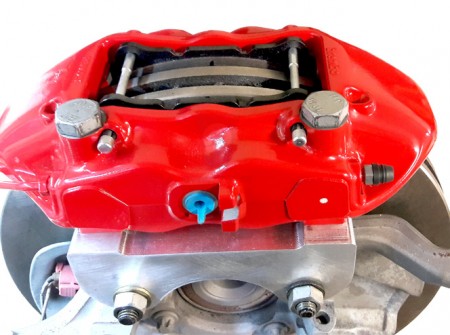

- Required caliper part number for these adapter plates is Alfa OE: 20841701 , 20841702 (20.8417.01 , 20.8417.02)
- Brake lines required for the KIT need to be 400 mm long.

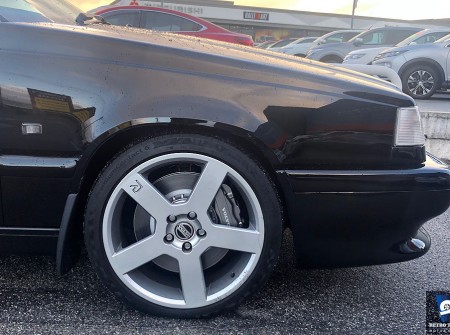

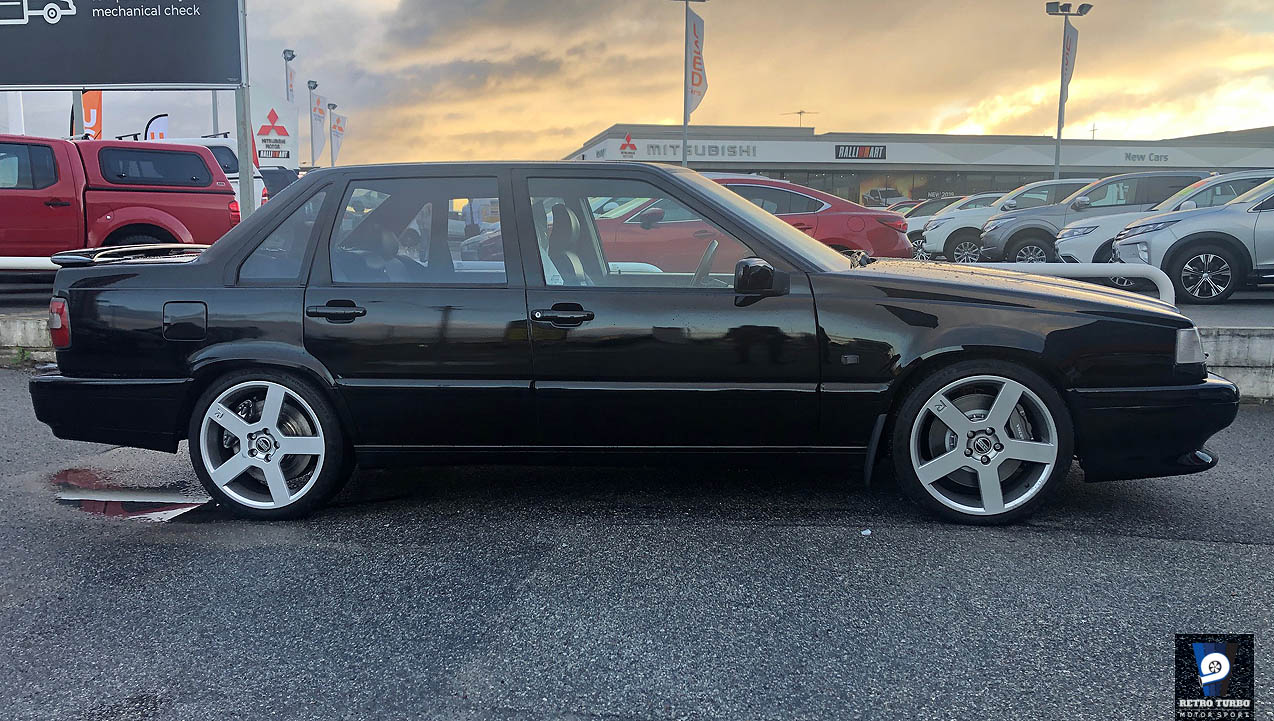

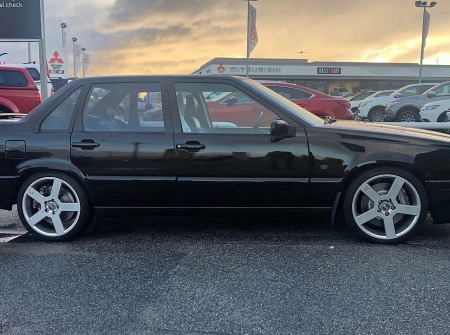

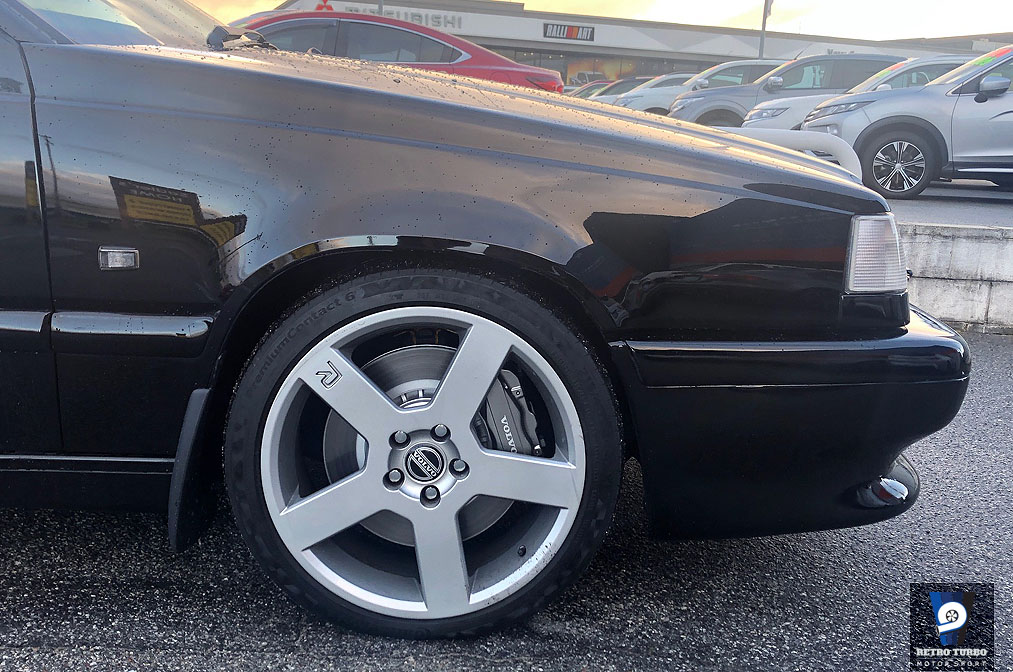

- The wheels on the black 850T5R are from a S60r called Pegasus, 18” x 8. No spacers fitted – everything bolts up perfect.

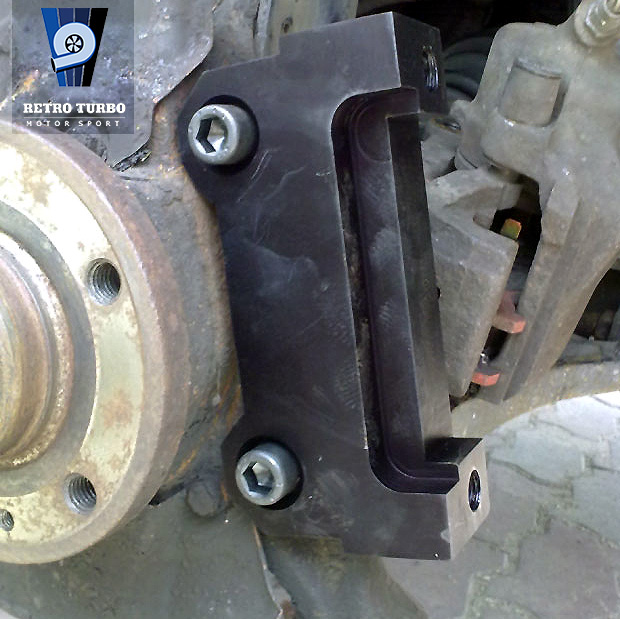

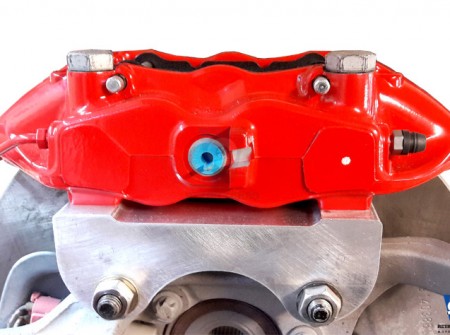

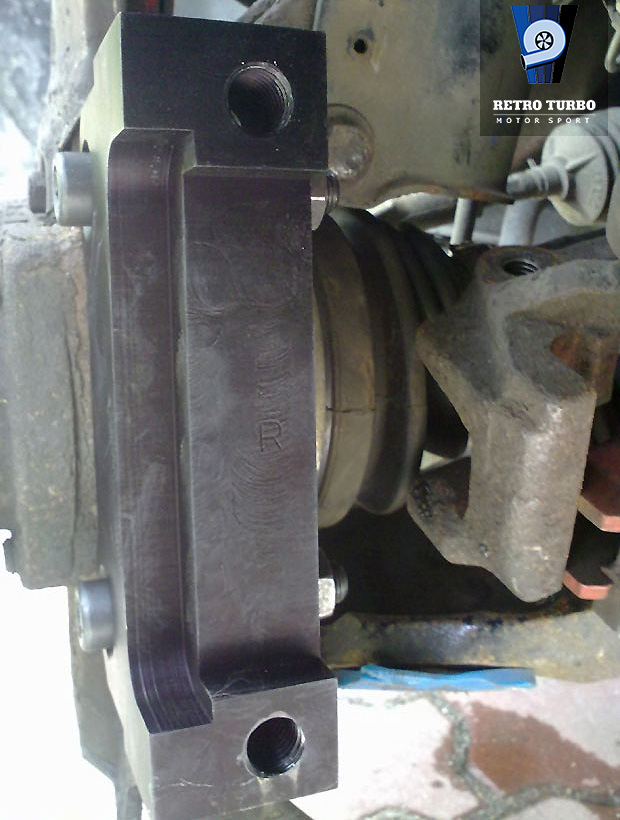

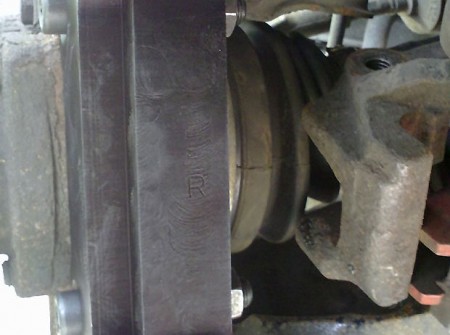

- Last 3 images in the gallery show design of adapter brackets made up to 2019 for customer reference only.
